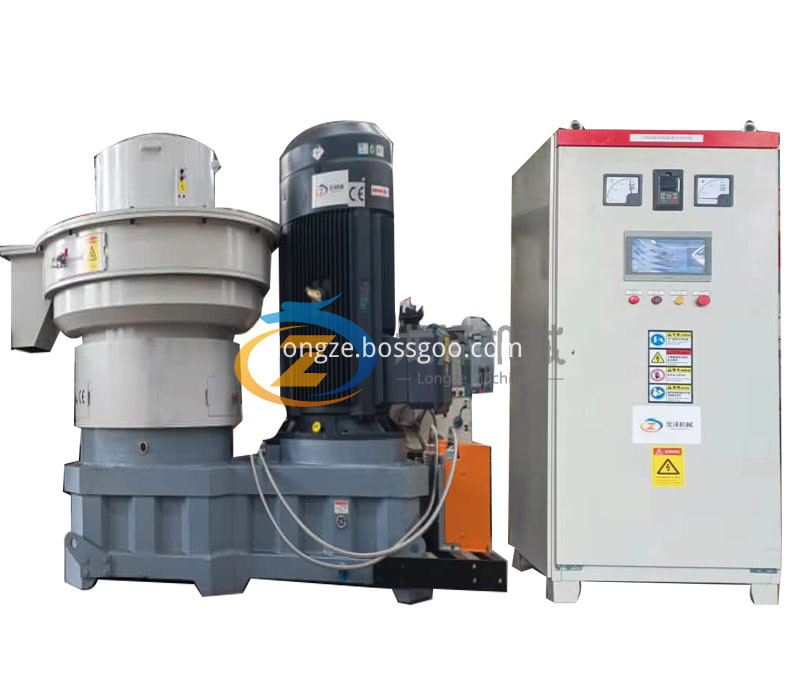

Specification

- Output: 2-3T/H

- Power (kw): 160+1.5+0.37+1.5+3-Number of rollers: 2 pcs-Pellet diameter:6, 8,10mm-Weight of machine (kgs):5200kg- Dimension(mm):2200*1700*1650- New generation Gear reducer systemWhole set include:*Fan Blower 3kw*Bag dust collector,*Automatic roller lubrication pump

*Electric control Box

operation instructions

1. Familiar with the working principle of the machine and the structure and function of each part.

2. Operators wear tight work clothes, cuffs do not open up, wear gloves, wear protective hats and dust masks, and must concentrate on the operation.

3. Before use, fill the pendulum needle wheel reducer with 46 # oil according to the logo.

4. The rubber ring on the ventilation hood of the machine reducer is removed completely as shown in Figure 1 before use.

5. Prepare abrasive material (oil): 5kg of raw material + 1.5kg of waste oil + 1kg of fine sand fully mix well.Oil can be recycled, maintain the amount of oil in the oil can be sufficient, when the oil amount is insufficient, the waste oil can be mixed well and continue to use.

6. Find a professional electrician to connect the power supply correctly by pressing the code on the electric control box.

7. After the power supply is successfully connected, first start the circulating oil pump switch, after the normal circulation of the machine granulation switch, do not worry to feed, to hear the "bang", the machine started successfully feed the mixed abrasive, the machine repeatedly grinding for 40 minutes, the normal production after the template hole is smooth.

8. After each startup, before and after the normal production, please drop the remaining particles in the hole with oil to prevent the hole plugging.

Company Overview

Shandong Longze Machinery Co., Ltd. is located in Zhangqiu District, Jinan City, Shandong Province, with a registered capital of 5 million yuan. The main business of the company is: environmental protection energy equipment, waste compression treatment equipment, organic fertilizer equipment, drying and cooling equipment, dust removal equipment, magnetic separation equipment, feed equipment, a total of more than 200 varieties, covering biomass energy, feed, organic fertilizer, environmental protection dust removal, biomass power generation and so on Areas.

The mainstream products have passed the technical appraisal and production license of inspection and testing institutions in many countries and regions, and are sold in many countries and regions. Our company also undertake various equipment accessories processing, mass production, as well as foreign directional procurement services. Based on years of experience in market development, equipment operation, pre-sale and after-sales service management, the company has formulated perfect product quality standards, user demand standards and flexible and perfect operation technology.

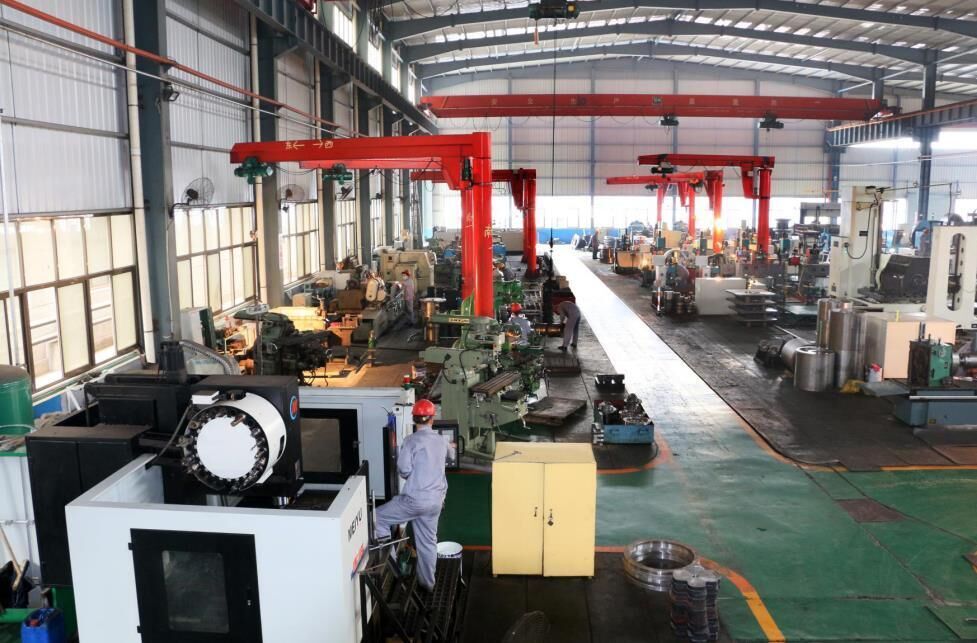

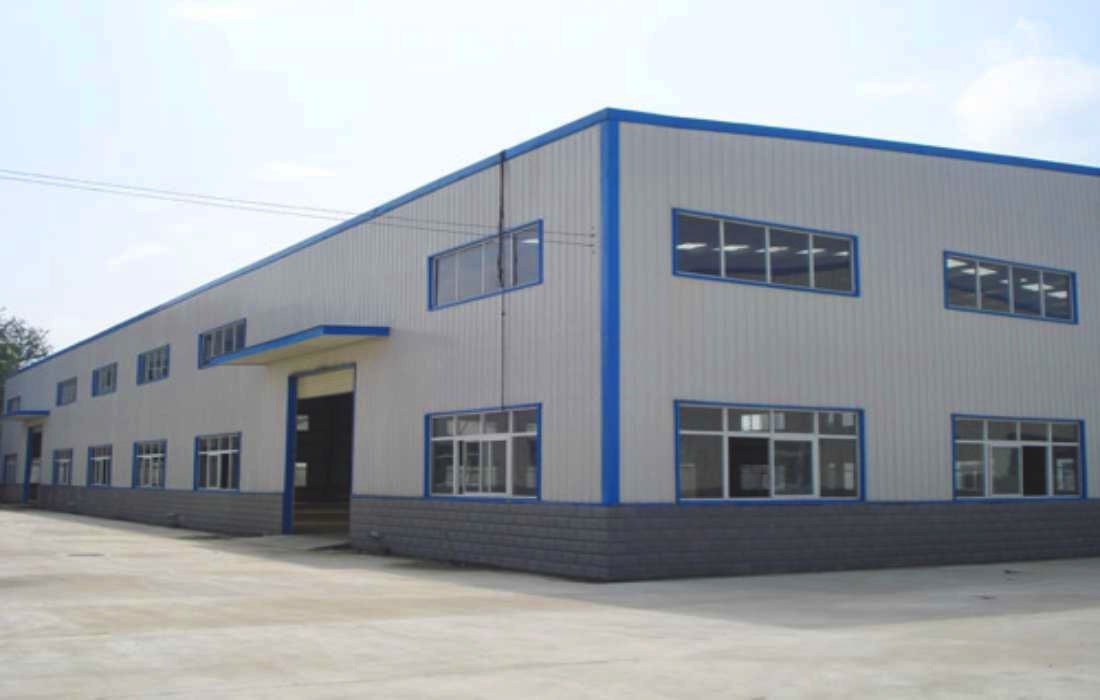

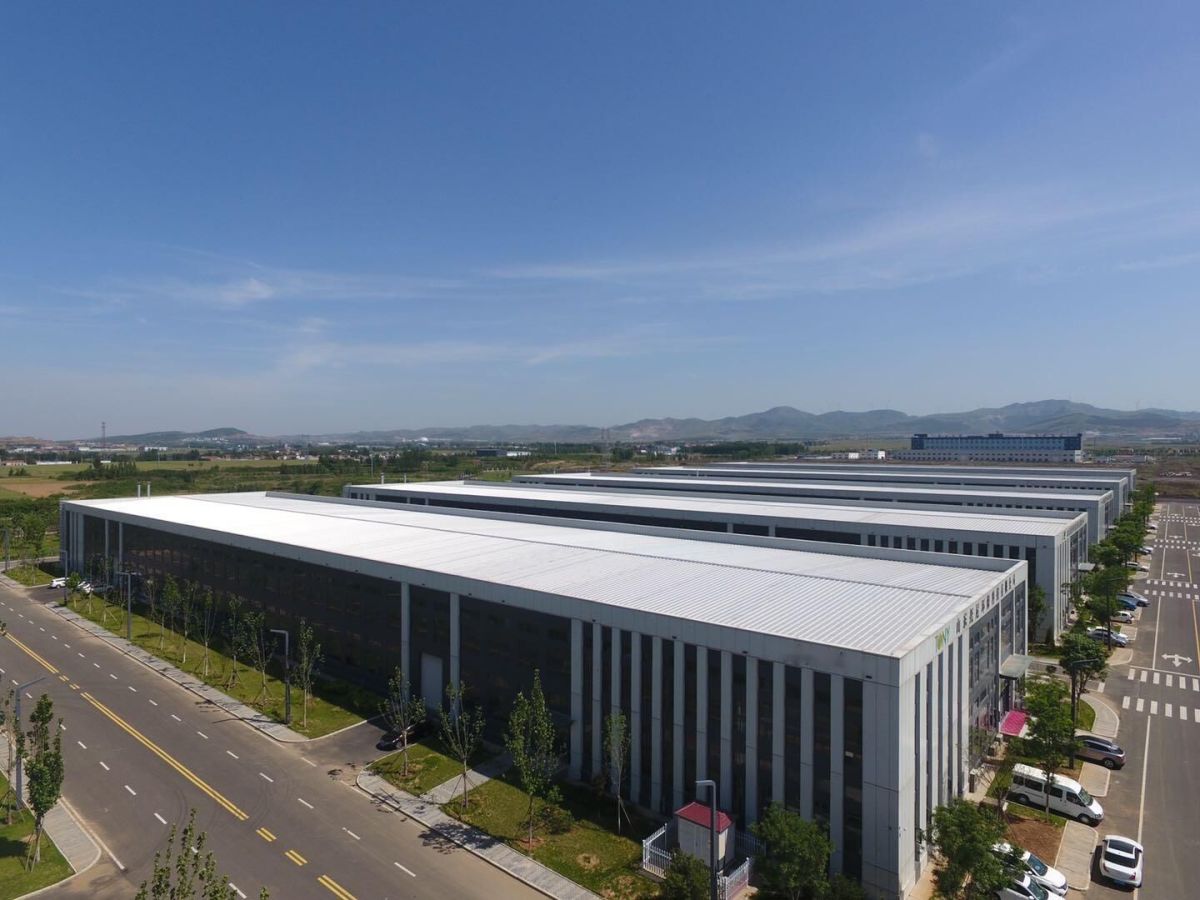

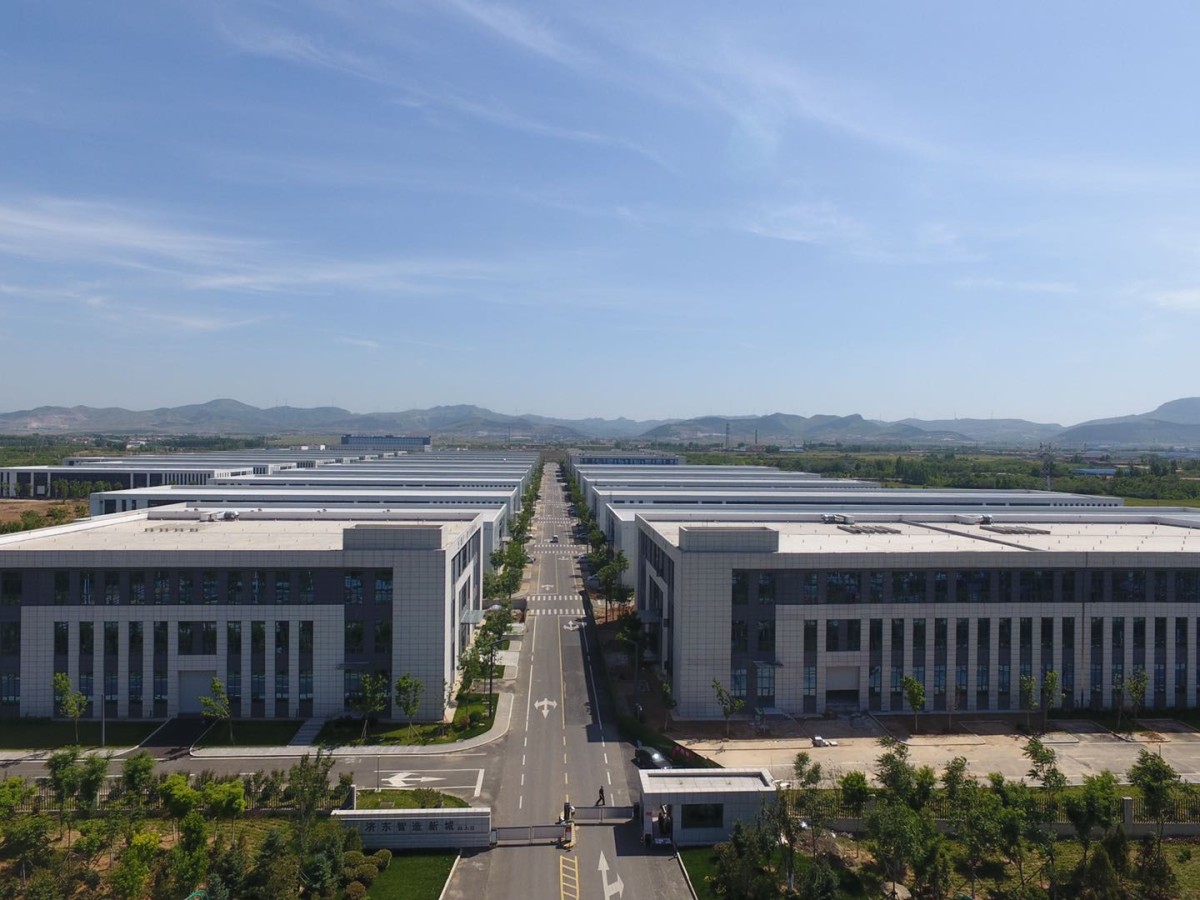

Company Photos

•
•
•
•
