Using Scope and Characteristics:

Horizontal wood splitter can split large wood log into two or four parts. The knife frame can be replaced according to customer demand. The splitter is mainly applied to large logs segments, roots, tree branches and more rigid timber. Operation flexible, stable, small footprint, easy maintenance and high efficiency.

Technical Parameter

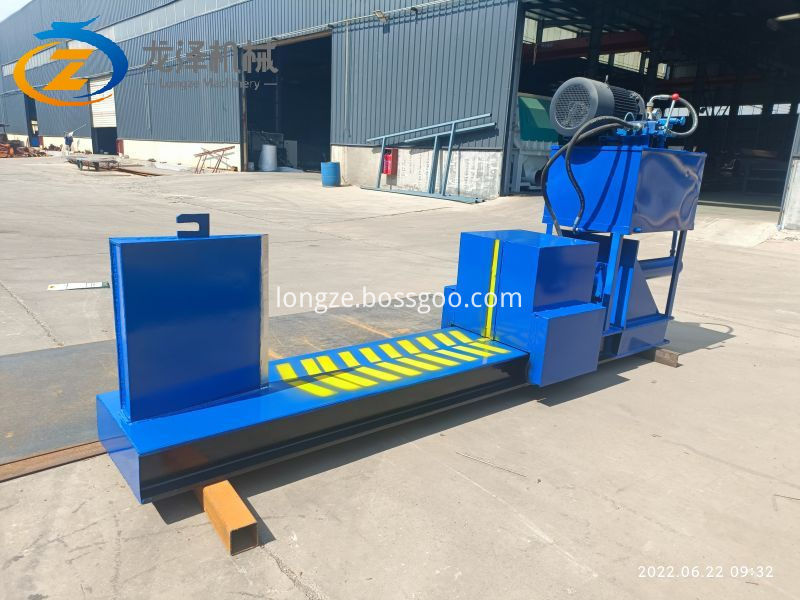

Main Structure

Horizontal wood splitter includes travelling wheels, legs, body and connected control volume, gear pumps and motors. A chopper in the body and push-and-pull frame which driven by push-pull rod; the body room is with the oil tank, hydraulic cylinder, piston engine and piston shaft. Control valve out of the control volume passes the slotted hole in lever oblique end face, fixed with a control valve head at its top end, the control board connected to the body through the rotation shaft, on which there are regulators.

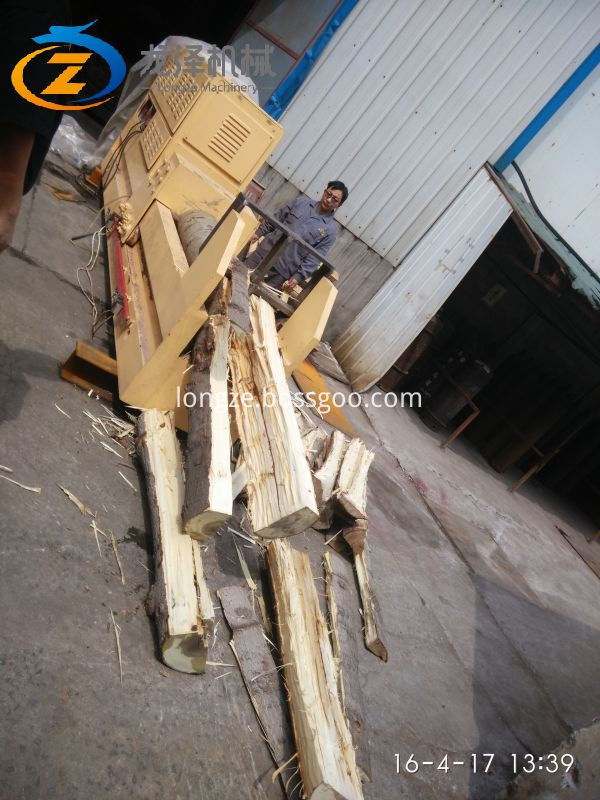

Working Process

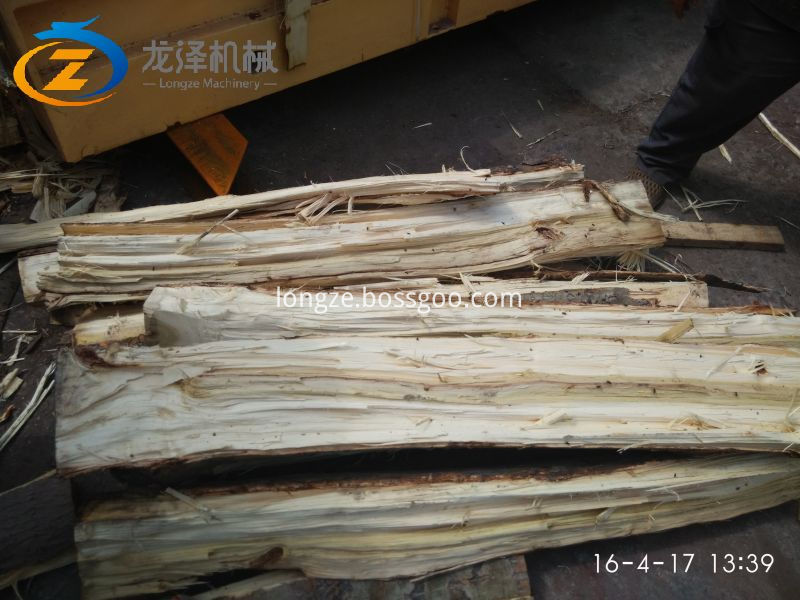

In-feeding wood logs and other raw materials into orbit, controlled the movement of travelling wheels by control panel, push the log head to move forward, the fixed knife can cut logs into four equal segments or two equal segments.
