VERTICAL RING MOULD PELLET MACHINE

MAIN PERFORMANCE AND FEATURES >

①The use of special gear box more suitable for the particle production industry, parallel hard tooth surface, more impact resistance, more powerful horsepower.

② Oil lubrication carefully create both sides of the case for selection:

Scheme 1: No butter, pure thin oil lubrication, oil circulation flow, cooling effect is good, more conducive to extending the service life of the bearing.

Scheme two: the press wheel butter lubrication, oil-free special structure, cancel the easily damaged fluorine rubber oil seal, a set of press wheel skin used in natural wear scrap will not break the bearing

③Feed the current control system, according to the size of the current automatically adjust the feed speed, feed reliable and not hold the machine, save the machine labor, the cost is greatly reduced.

④ The feed port and the feeding system adopt the rapid disassembly structure, which makes it more convenient to replace the die press roller and save time.

PK FLAT MOLD PELLET MACHINE SEVERAL ADVANTAGES >

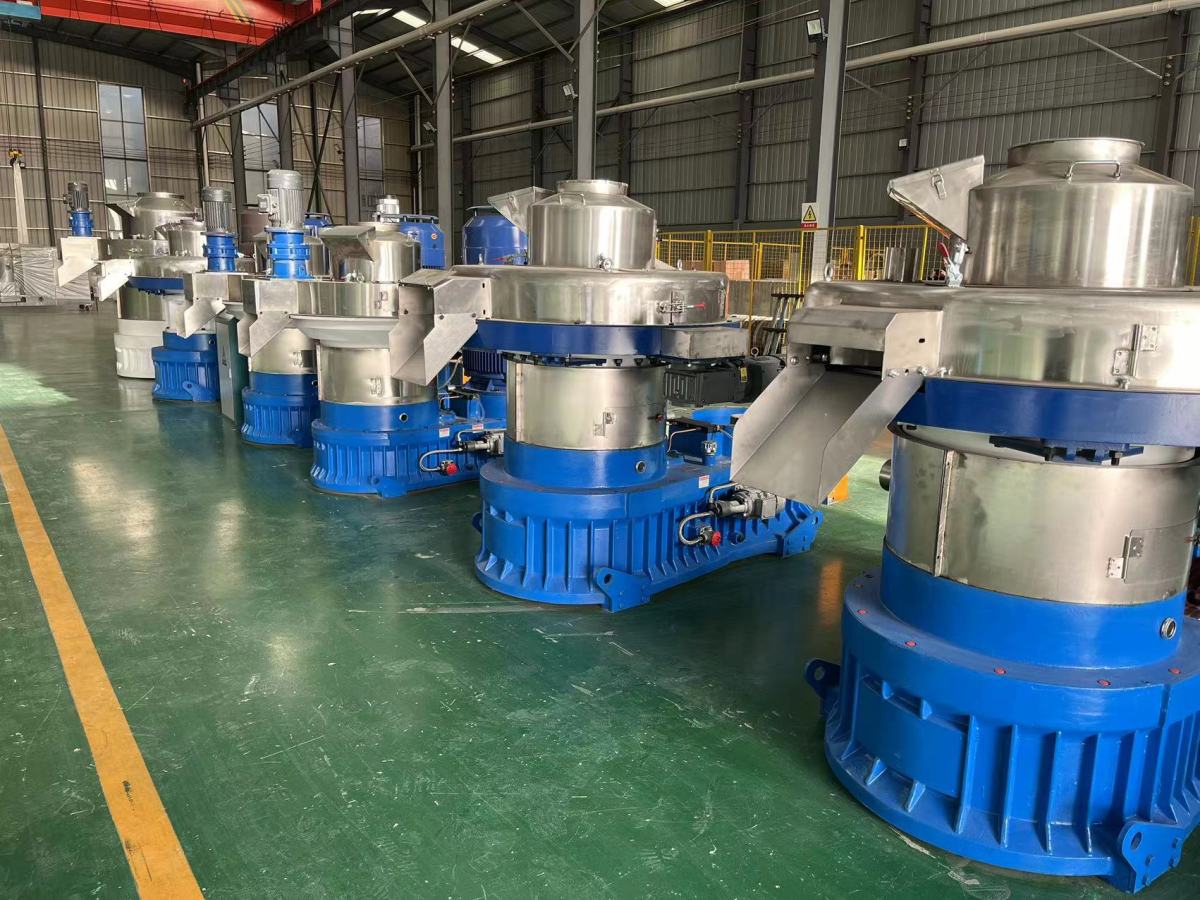

VERTICAL RING MOLD PELLET MACHINE:

1,The mold is stationary, the press wheel is rotating, and the feed is vertical, which makes the feed more direct and smooth.

2,Vertical structure, ring mold, more conducive to heat cooling.

3,Double layer mold design, can be used in one mold, can also be used in one mold, reduce cost and increase efficiency.

4,The use of independent discharge system will not affect the particle production.

FLAT MOLD PELLET MACHINE:

1,The mold rotates, the press wheel is stationary, the feed is vertical, and the feed is direct, but due to the rotation of the mold, the extruded molding particles will follow the mold for two times, resulting in poor particle molding effect.

2 The material above the plate die is covered, and the finished particles with higher temperature are below. The whole pressing chamber is relatively closed, and the heat dissipation and cooling effect is not ideal, which is not conducive to the service life of the bearing and the wear cycle of the wearing parts.

3 Single piece design only.

4 Using the main power to move the material, the rotation rate is too fast, and the particles are still in the hot state, which is easy to cause damage to the finished particles.
