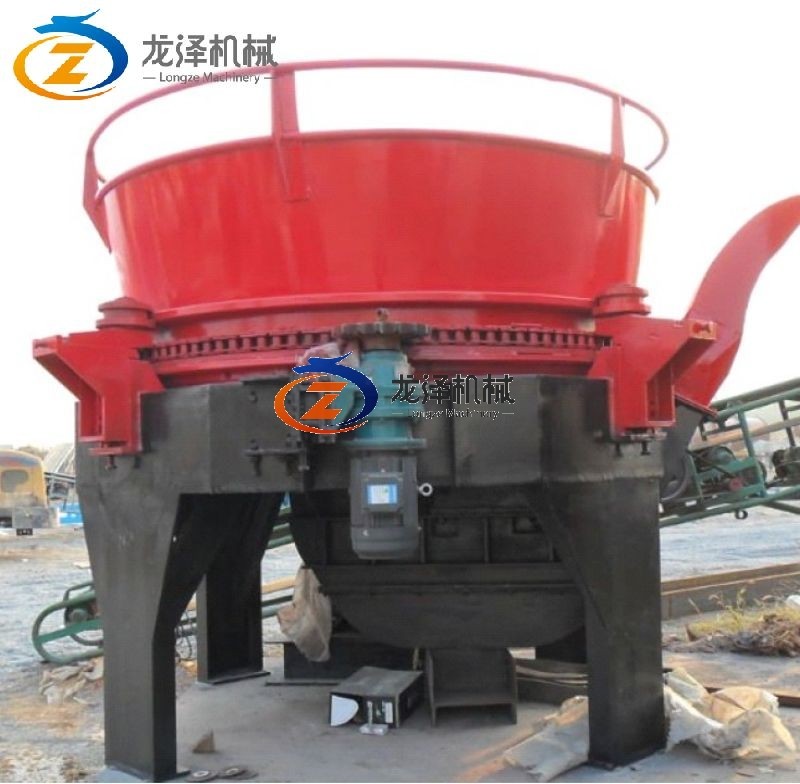

Rotary cutting machine

PRODUCT DESCRIPTION

This series of rotary cutter can crush various crop straws, such as corn straw, wheat straw, rice straw, alfalfa grass, Pennisetum, etc. It can also crush boards, strips and skins with the size less than 800x100x10mm (thickness), and the bundled materials can be crushed without breaking bundles.

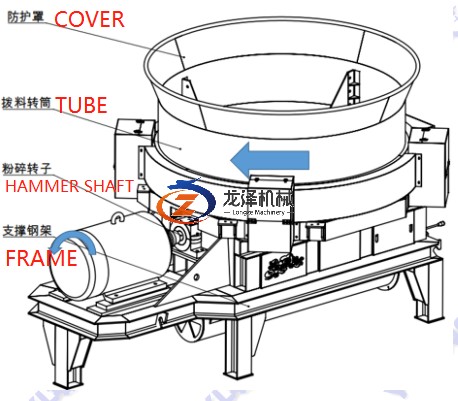

This series of rotary cutting pulverizer adopts steel plate welding structure, the motor and the pulverizer rotor are installed on the same base, and the drum-type gear coupling is used for direct transmission. The rotor has been verified by dynamic balance, and the structure is reasonable, durable, safe and reliable, easy to install, convenient to operate, with little vibration and high productivity.

SPECIFICATINS

Model	XQFS75×100	XQFS75×150	XQFS75×150(S)
Spindle speed (r/min)	2950	2970	2970
Number of hammer pieces (pieces)	96	156	132
Drum diameter (m)	2	2.5	3

PERFORMANCE INDICATORS

Capacity(T/H)	Model	Power KW	Fan blower	Cyclone	Airlock	airpipe	Dust collector	Tube diameter
2-3 XQFS75*100		90+5.5+1.5	CM-7C-18.5KW	Φ1600	400-4kw	Φ377	120 holes	Φ2000
		110+5.5+1.5	CM-7C-22KW
4-6 XQFS75*150		132+7.5+1.5	CM-8C-30KW	Φ2000	600-5.5kw	Φ426	150holes	Φ2500
		160+7.5+1.5	CM-8C-37KW
7-10 XQFS75*150(S)		132+132+11+1.5	CM-8C-30KW*2	Φ2000*2	600-5.5kw*2	Φ426*2	150holes*2	Φ3000
		160+160+11+1.5	CM-8C-37KW*2
For materials: straw; reference standard: wheat straw; φ 15mm screen; moisture ≤ 15%
When the output is deviated to the high value, the main motor power and the fan power are selected.

WORKING PROCESS

Feeding the materials into the rotary drum tube, then will be feeding into the grinder chamber, at the high speed rotating hammers and the fraction of the sieve, the materials will be grinded, then at the function of sucking force of the fan blower, the grinded materials will be sucking out from the bottom of the machine.
