HOW TO CHANGE THE RING DIE OF 560 PELLET MACHINE

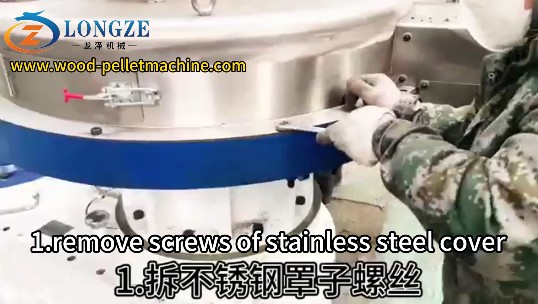

  1.Remove the screws of stainless steel cover

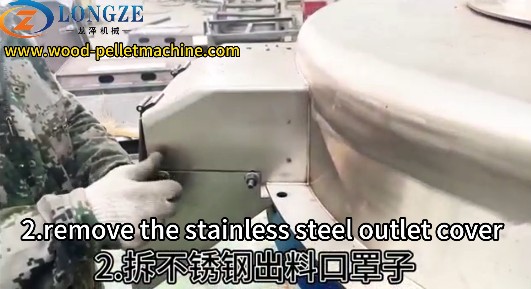

  2.Remove the stainless steel outlet cover

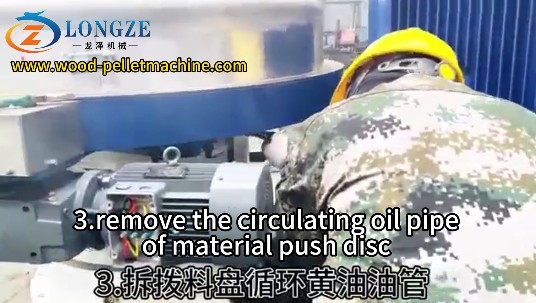

  3.Remove the circulating oil pipe of material push disc

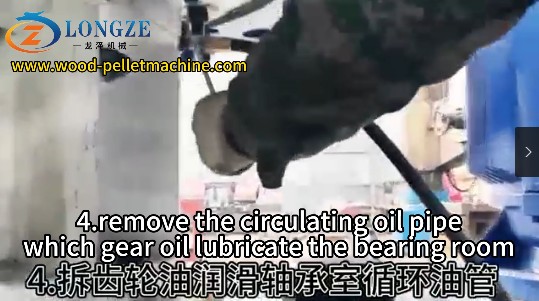

  4.Remove the circulating oil pipe which gear oil lubricate the bearing room

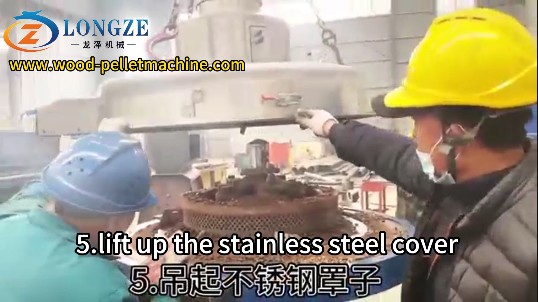

  5.Lift up the stainless steel cover

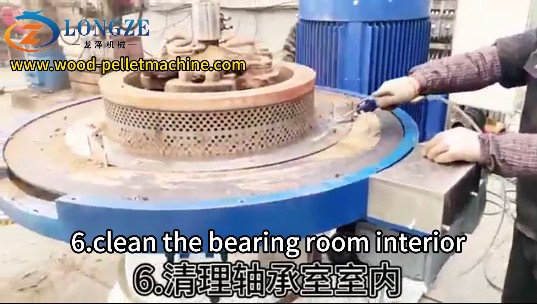

  6.Clean the bearing room interior

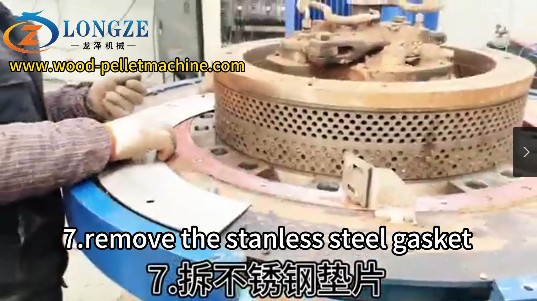

  7.Remove the stainless steel gasket

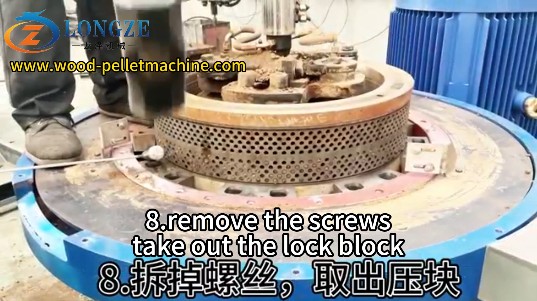

  8.Remove the screws and take out the lock block

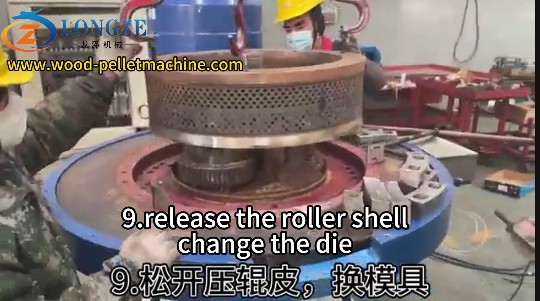

  9.Release the roller shell and take out the ring die

**************************************************************************

8 TH(132KW) XGJ560 Pellet Machine

- Output: 1.5-2T/H

- Power (kw): 132+1.5+0.37+1.5+3 (380V,50HZ,3PHASE)

-Number of rollers: 2 pcs

-Pellet diameter:6, 8,10mm

-Weight of machine (kgs):5200kg

- Dimension(mm):2100*1700*1600

- New generation Gear reducer system

Whole set include: *Fan Blower 3kw *Bag dust collector, *Automatic roller lubrication pump *Electric control Box
