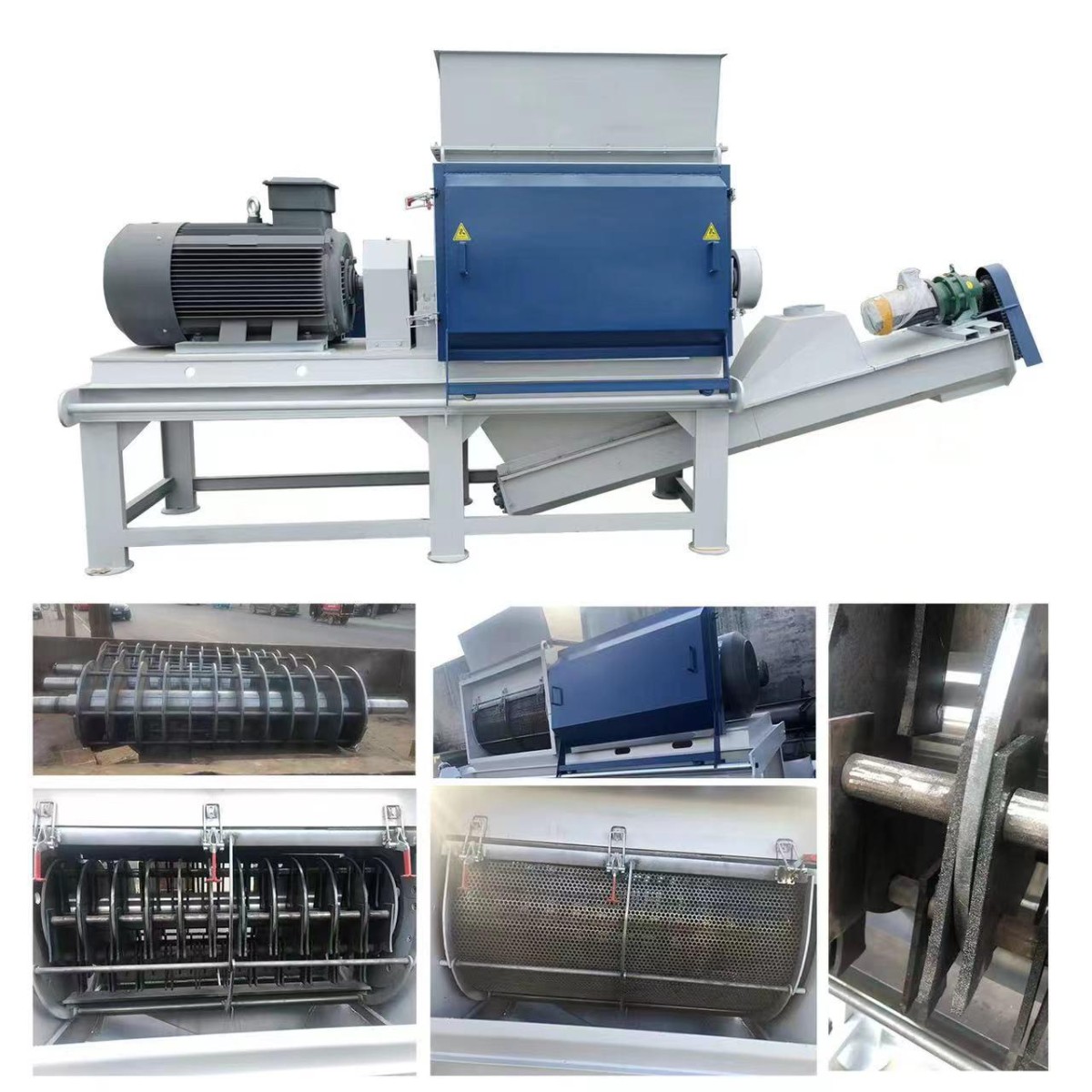

GXP hammer mill, the motor and rotor of this machine installed on the same base. They are directly connected by coupling. The rotor has been passed dynamic balance test; it can rotate in both of forward backward direction. There are symmetrical operation door and safety interlock in both sides. The operation doors are helpful to renewal the sieve plate and hammers, also helpful for checking up and debugging. Feed inlet is placed in the top of crusher which can be matched with all kind of feed equipment.

There is one piece of sieve plate installed at the bottom of wood hammer mill. The size of crushed material could be changed by changing different sieve plate with different hole. Normally, the finished size is from 2mm to 30mm adjustable.

Spare parts of hammers and sieve plate are made by our CNC system, through high technical heat treatment. This series hammer mill has reasonable structure, sturdy and durable using, safety and dependable, simple installation, easy operation, tiny vibrating, high efficiency etc. advantages, which is the most ideal grinding equipment of all kinds of wood chips, wood shavings, grass, straw, stalk, corn, weeds, soybean, PVC foaming board, rubber and so on

GXP80X100 Hammer mill system

- Approved CE

- Model: GXP80X100

- Power: 132 kw

- Capacity: 5-6t/h

- Product specification: 4-10mm

- Rotor quantity: 2 rotors

- Hammer quantity: 192 pieces

- Weight: 8600KGS

- Dimension: 3600×1800×3200mm

 Fan blower: 30kw

Cyclone Φ100*2

Air-lock(BFY-24L): 3kw

Dust collector-72

Electric cabinet
