Specification

- Approved CE, ISO9001:2008

- Capacity:1.5-2.5 t/h

- Power: 45+1.5+2.2kw

 Main Power: 45 kw

 Feeder power:1.5 kw

 Conditioner power: 2.2kw

- Ring die mould

-Pellet hole size: 2-10MM

- Dimension:2100×1550×1060mm

- Weight: 1.7 T

- Plastic bubble and Iron sheet case packing

(With frequency conversion feeder,one conditioner and Electric control box)

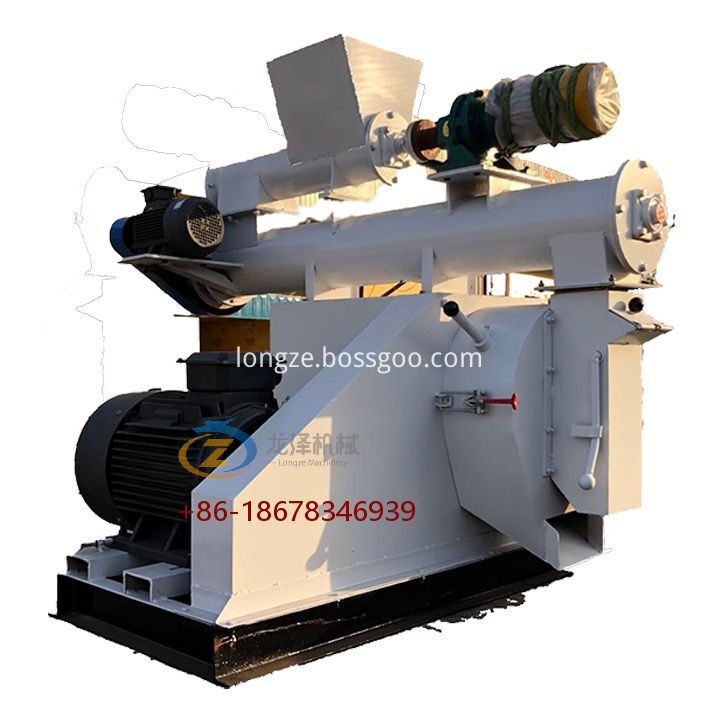

The ring die pellet mill is one of the key main equipments in the pellet feed production line. The feed from the powder state to the pellet formation needs to be completed through four areas:
1. The material is conveyed into the modulator through the speed-regulating feeding auger. In order to obtain a good granulation benefit (increase the output and quality), after adding hot steam for conditioning, the chute-shaped feeding pipe passes through the ring die cover, With the help of gravity and the centrifugal force generated by the rotation of the ring die, the material is tightly attached to the ring die cover and the inner wall of the mold (feeding area).
2. Under the action of the shifting knife, the material is fed evenly and continuously, and the wedge-shaped space (pressing area) formed by each pressing roller and the ring die.
3. Because the gap between the working surface of the outer wall of the pressure roller and the working surface of the inner diameter of the ring die is only 0.1-0.3mm, and this gap is basically horizontal, a certain extrusion force (extrusion zone) is formed.
4. Due to the feeding of the material, under the strong extrusion between the die and the roller, the material is compacted, extruded into the die hole, and formed into a (forming area) in the die hole.
5. The material is continuously fed into the pressing zone, then extruded into shape, and continuously extruded from the die hole, and cut into various required particle lengths by the cutter that can adjust the distance between the knife edge and the outer wall of the ring die.
