CE diesel wood chipper shredder

Product description

Mobile diesel engine wood chipper introduction:

SHANDONG LONGZE MECHANICAL EQUIPMENT CO.,LTD Mobile diesel engine wood chipper is suitable for fruit, forest, tea factory, nursery, garden residues, branches, grape branches, cotton branches, building branches, waste, straw, because easy to use, can be applicable to the park, campus, enterprise units, urban areas of branches, leaves, bark crushing.Can be used for edible fungus base material, safe and reliable, practical, high crushing efficiency.

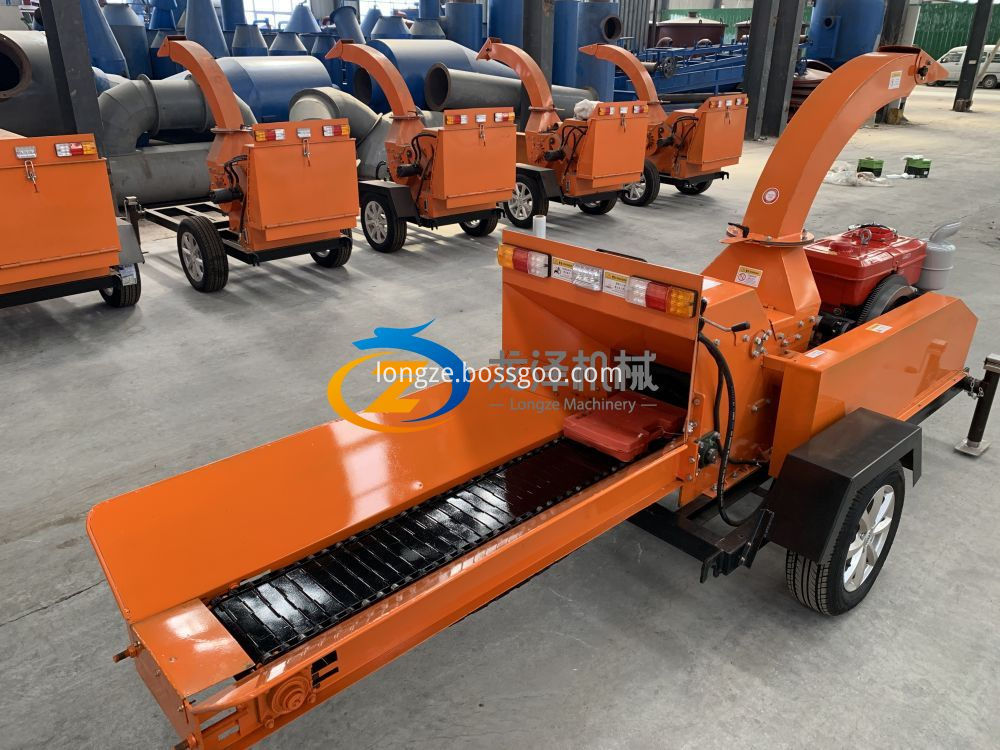

4 Jpg

Technical Parameter

unit typeType 6130 tree branch grinder
Diesel engine power type
capacity1-3T/h
outline dimensionL2300*W1300*H1800mm
With power25 / 32 / 55 HP Diesel Engine
starting modeElectric start
Host speed2900r/min
Feed pressure roller diameter280mm
Feed pressure roller powerfluid motor
Knife roller diameter300mm
Number of bladesMoving knife, 3 pieces, still knife, 1 piece
Blade length300mm
Battery specifications12V      105aH
Generator power800W
Diesel tank volume20L
Hydraulic tank volume25L
Feed gearEnter-reverse-stop three-gear manual control
Feed mouth size700*500mm
Feed throat size300*250mm
Hub sizeA 13-inch aluminum alloy wheel hub
Tire size165/70r13
Accelerator adjustment modeTurn off the throttle with an integrated operating handle
The direction of the outletThe 360 ° quick adjustment device and outlet mouth height adjustment
Other configurationsTail lights, feed lighting, foldable hand shake jack, traction height adjustable,with motor cover plate and chain conveyor

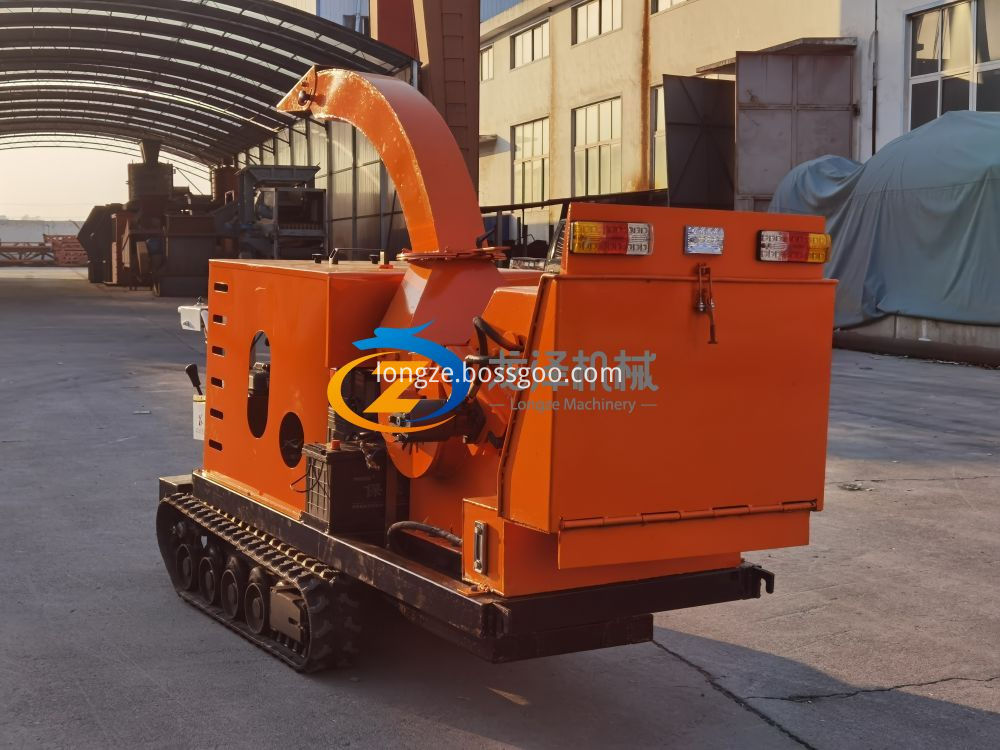

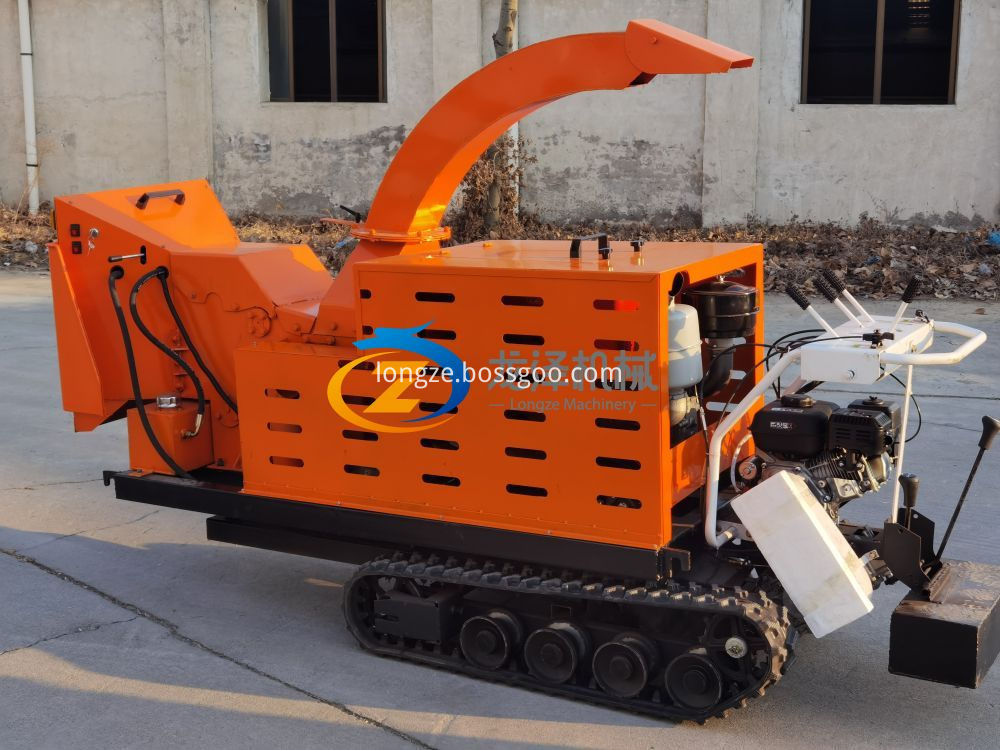

11 Jpg10 Jpg

Advantages:

l. Diesel mobile branch chipper adopts automatic feeding device, which one person can operate, which not only saves manpower, but also ensures the safe production in the production operation;

2. mobile branch shredder adopts characteristic blade, with large blade hardness, more thorough cutting, good blade quality and long service life, which saves expenses for users;

3. Mobile branch shredder has safety labels and safety marks, always to remind users of the problems they should pay attention to in the process of use, to ensure the safety of people and the safety of the machine.

4. Diesel mobile branch grinder can be crushed and processed for all branches below 25 cm, and the equipment is highly stable, convenient and durable!
