Specification:

- output: 1.2-1.5T/H

- Power (kw): 90+1.5+0.37+0.37+3(380V,50HZ,3PHASE)

Number of rollers: 2 pcs-Pellet diameter:6,8,10mm

Weight of machine (kgs):4600kg- Dimension(mm):2100*1700*1600- New generation Gear reducer systemWhole set include:

*Fan Blower 2.2kw*Bag dust collector,*Automatic roller lubrication pump*Electric control Box

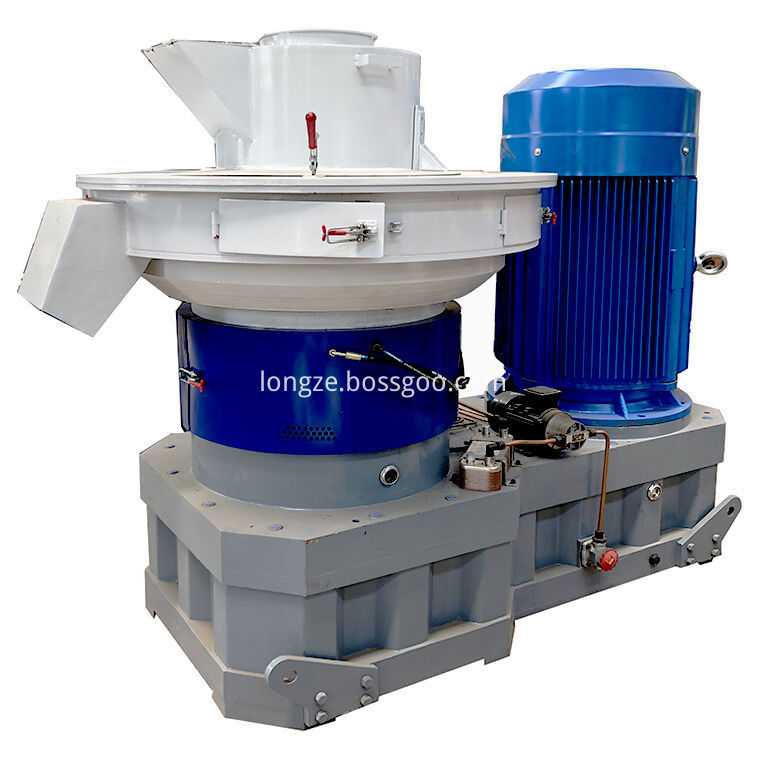

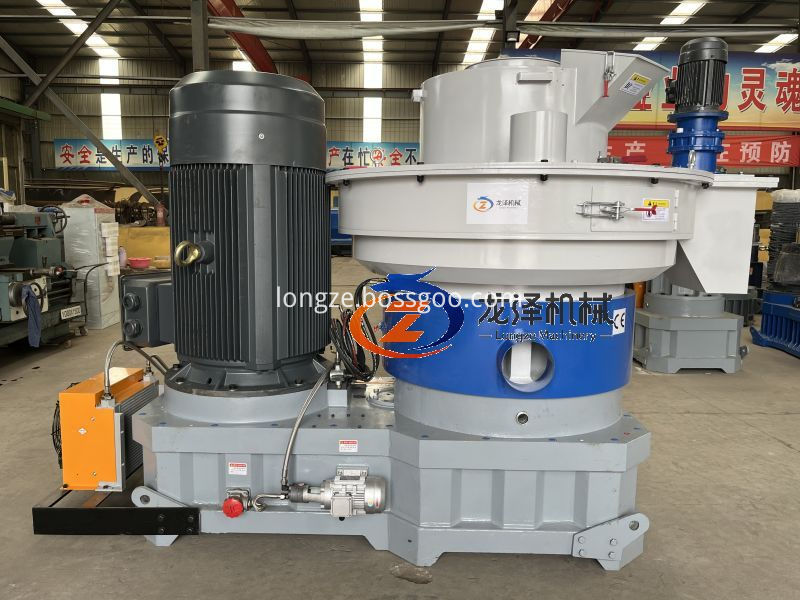

Sawdust ring die granulator is based on rice husk, peanut shell, melon seed shell, bamboo chips, bagasse, palm shell, branches, branches, bark, leaves, wood scraps; large furniture factories, wood factories, various Sawdust produced by wood, etc., are used as raw materials to process them into equipment for renewable fuel pellets that will replace coal in the future.

① The sawdust pellet machine can produce biomass pellets based on various raw materials such as wood chips, straw, and chaff.
②. Various molding technologies such as cold pressing molding and extrusion molding are adopted, and the oil polishing and shaping process makes the appearance of biomass particles beautiful and the structure relatively compact.
③. The wood pellet machine has high output, low energy consumption, low noise, low failure, strong fatigue resistance, continuous production, economical and durable.
④. The whole machine adopts special high-quality materials and advanced coupling transmission device, and the key components are made of high-quality alloy steel and wear-resistant materials.
⑤. The wood pellet machine mold is placed flat, with the mouth upward, and directly enters the pelletizing mold from top to bottom.
⑥. The specific gravity of wood chips is very light, straight up and down. After the sawdust enters, it is rotated and thrown around by the pressure wheel, and the particles are evenly pressed.
⑦. The sawdust pellet machine is open upward, which is easy to dissipate heat. In addition, it also has a set of air-cooled cloth bag for dust removal and automatic refueling.
⑧. The sawdust pellet machine has a strong enlarged shaft and a large cast steel bearing seat. Its large bearing does not bear any pressure, is not easy to break, and has a long service life.
