Machine Induction

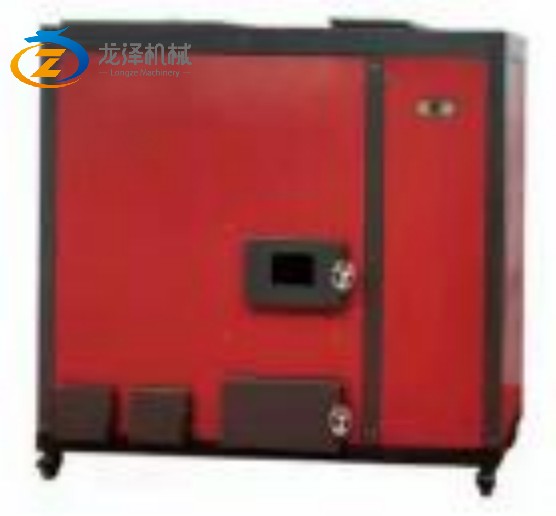

Hot water pellet boiler is a kind of water heating equipment that uses pellet fuel. It is a new energy device that generates heat by burning wood pellets. Its use method is different from traditional oil and gas water heaters. The rating power of WS-1500B Hot Water Pellet Bolier is 150kw, its heat room size is 1500 square meters.

Technical Parameter

Approved CE

Model  WS-1500B

Rating Power  150kw

Hopper Capacity  154kg

Fuel Consumption  22-40kg/h

Efficiency  85%

Auto ignation time  5-15min

Auto burning time  10-22h

Rated voltage and frequency 220v/50Hz

Dimension  2168×751×1541mm

Weight  970kg

Heat Room Size 1500 square meters

Electric Consumption 1000-2000w/h

Fuel Selection

1. Fuel quality: Choose dry, odorless, and impurity-free pellet fuel, and avoid using fuel with too high a moisture content and too many impurities. This will not only affect the combustion effect, but also easily damage the hot water pellet boiler.

2. Pellet size: The combustion chamber of hot water pellet boiler has certain size requirements. Therefore, when selecting pellet fuel, you need to pay attention to whether its size meets the requirements and avoid using fuel that is too large or too small.

3. Calorific value of fuel: Different types of pellet fuels have different calorific values, so the calorific value of the fuel needs to be considered when selecting. Choosing fuel with a higher calorific value can improve the thermal efficiency of the hot water pellet boiler.

Product Features

●Suitable for individual families, small apartments, small public places, small offices and hotel or building guest rooms

●Equipped with self-developed advanced integrated microcomputer control system. One-touch operation

●Equipped with an automatic ignition device that instantly generates high temperatures. As long as there is fuel in the fuel tank, all programs run automatically and no professional supervision is required.

●The furnace design is simple, the fuel is burned completely, the gasification effect is good, and the combustion is odorless, smokeless and dust-free.

●The furnace is insulated as a whole, small in size, and does not need to erect a high chimney. Bright appearance, exquisite packaging, and the visual warmth brought by the flames

●After the fuel is burned, only a small amount of powder particles remain, and it is equipped with a drawer-type ashtray, which is convenient, clean and simple
